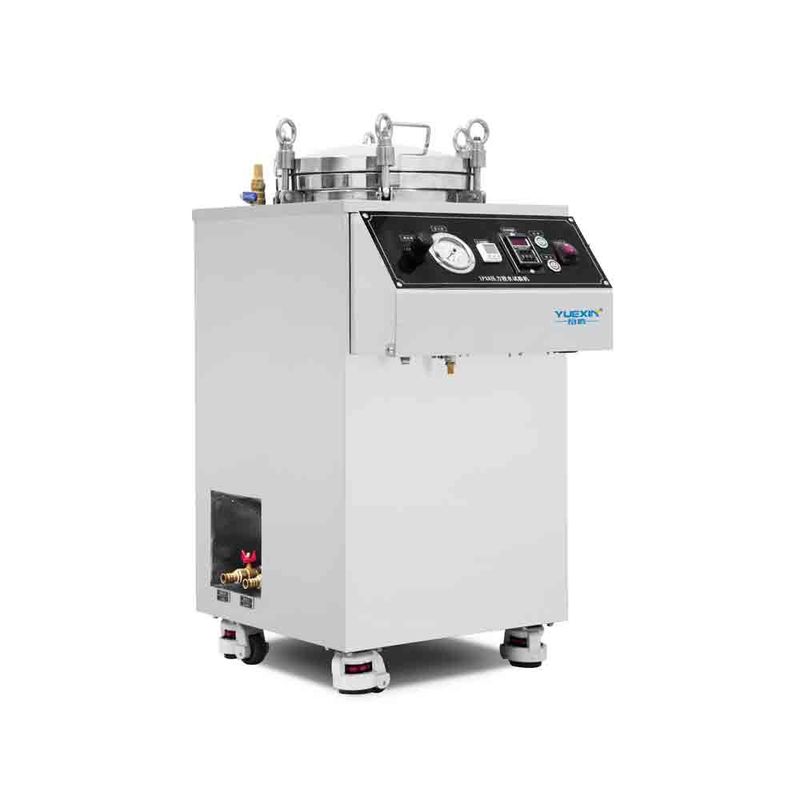

IPX8 20L Water Immersion Test Equipment 100m for Industrial Applications
Product introduction:
The IPX8 water immersion test equipment is a testing instrument designed to evaluate the waterproof performance of product casings. It can simulate environments at depths of up to 100 meters, possessing exceptional capabilities for deep waterproof testing. The equipment features a button-style design for easy operation and supports manual opening of the lid, facilitating sample placement and retrieval for testers. Additionally, it boasts high-precision detection performance, ensuring that products maintain excellent waterproof performance even in harsh underwater environments.
- The device is equipped with a pressure sensor, which can display the internal pressure change synchronously.
- The tank cover is fastened with stainless steel can lid flange fasteners, and the seal is firm.
- Timing is performed by a time relay, and timing starts after the internal pressure reaches the set value.
- After the test is complete, the device automatically vents the pressure.
- The tank cover is connected with a mechanical safety valve. If the set pressure exceeds the set pressure, the safety valve will release the pressure directly to ensure the safety of users.
- The tank lid is lifted and lowered by cylinder driving to reduce operating pressure.
- If the user needs to provide an external power supply for the sample, we can open a hole in the lid and provide a locking device (wire diameter <15mm)5.
Detail images:
exhaust valve inlet and outlet
Generl specifications:
| Outer dimension |
Approx W 460×D 580×H 920 (mm)
|
| Pressure accuracy |
1 kPa |
| Power supply |
220V/50Hz |
| Power |
100w |
The technical data:
| Item |
Specification |
| Thickness of lid |
15 mm |
| Flange thickness |
20 mm |
| Tank thickness |
3 mm |
| Equipment net weight |
Approx 70 kg |
| pressure range |
0-300 kPa |
| Water depth(maximum) |
100 meters |
| Adjustment method |
Automatic adjustment |
| Opening method |
cylinder drive |
| Pressure accuracy |
1 kPa |
| pressure error value |
±2 kPa |
| Set pressure of safety valve |
0.35 Mpa(350kPa) |
|
Testing time6
|
0-999 s/min/h |
| power supply |
220V/50Hz |
| power |
100 w |
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 The formula of the corresponding relationship between pressure and water depth: P=9.8d (Unit :kPa,m).
5 Please wear insulating gloves during power-on test to avoid personal safety problems.
6 The time unit of the test can be freely selected, and it can be adjusted through the time relay before starting the test.
7 The user needs to prepare an air compressor in advance (recommended gas storage capacity > 60L). If you need us to buy it on your behalf, you need to explain in advance.
8 The photos may not match the actual ones, and are for user reference only.
