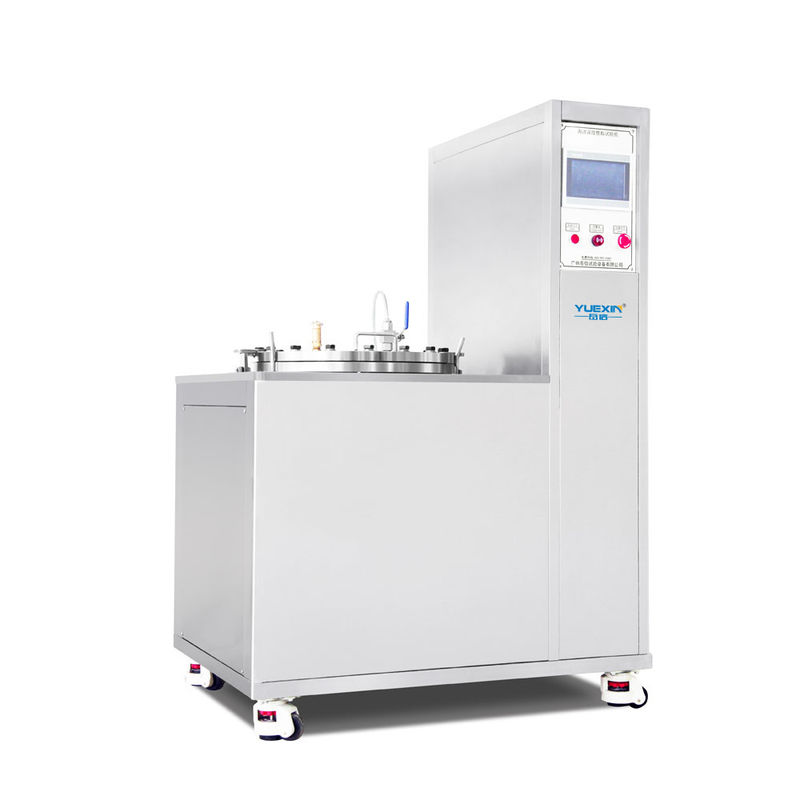

200m 100L Touch Screen Controlled Deep Water Simulation Test Machine For IPX8

200m 100L Touch Screen Controlled Deep Water Simulation Test Machine for IPX8

Equipment composition:

The ocean depth simulation test chamber is primarily composed of a 304 stainless steel outer casing, a touch screen control system, a pressure controller, safety valves, and other components.

• Outer Casing and Tank Body:

Made of 304 stainless steel, they exhibit excellent corrosion resistance and pressure bearing capabilities.

• Control System:

Equipped with a touch screen control system, it facilitates users in setting test parameters and monitoring the testing process.

• Safety Valves:

These ensure that during the testing process, when the pressure exceeds the set value, it can automatically release the pressure, safeguarding the equipment and personnel's safety.

Product details:

                                                            lid rim                                                                                                                                   inlet, outlet and overflow

Product characteristics:

The deep-sea simulation test machine is a specialized tool designed to mimic the high-pressure conditions found in the deep sea. Characterized by its sturdy construction and meticulous design, it employs cutting-edge hydraulic or pneumatic pressure amplification technology to accurately replicate deep-sea high-pressure environments, spanning from shallow to deep waters. This device meticulously regulates pressure to evaluate the performance parameters of deep-sea equipment and materials under high-pressure scenarios.

1 The Machine is suitable for IPX8 waterproof test or Simulate the deep sea test environment.

2 The tank is made of 304 stainless steel material, which can ensure the pressure performance of the container and is not easy to rust.

3 All electronic control components are imported from LS, Panasonic, Omron and other brands, and the touch screen adopts a true-color 7-inch screen.

4 The pressurization method adopts the water injection pressurization method, the maximum test pressure can be simulated up to 1000 meters, and the equipment is equipped with a safety valve pressure relief valve (mechanical).

5 The pressure sensor is used to detect the test pressure and has the effect of stabilizing the pressure; if the pressure in the tank exceeds the pressure, it will automatically open the safety valve to drain water to relieve the pressure.

6 The control is equipped with an emergency stop operation button (the pressure is automatically released to 0 meters after pressing the emergency stop).

7 Support two test modes, users can choose according to test requirements:

① Standard test: The water pressure value and test time can be directly set, and the timing test will start when the water pressure in the tank reaches this value; the alarm will be prompted after the test is over.

② Programmable test: 5 groups of test modes can be set. During the test, you only need to select a certain group of modes and press the start button; each group of modes can be divided into 5 continuous test stages, and each stage can be set independently time and pressure values. (In this mode, the number of loop tests can be set)

8 Test time setting unit: minute.

9 Without a water tank, fill the tank with water after connecting the water pipe, and then pressurize it with a booster pump.

10 Casters and foot cups are installed at the bottom of the chassis, which is convenient for users to move and fix.

11 Protective device:Leakage switch, pressure safety valve protection, 2 mechanical pressure relief valves, manual pressure relief switch, emergency stop button.

Technical parameter:

Application:

Primarily utilized in scientific research and industrial testing, the deep-sea simulation test machine simulates extreme deep-sea environmental conditions. It can reconstruct high-pressure, low-temperature, and dark lab conditions, serving as a crucial platform for the development, testing, and validation of equipment such as submersibles, underwater sensors, and deep-sea optical cables, ensuring their exceptional performance in actual deep-sea applications.

Notice:

Due to the technical upgrade, some technical parameters do not conform to the actual machine, please forgive us without further notice.
