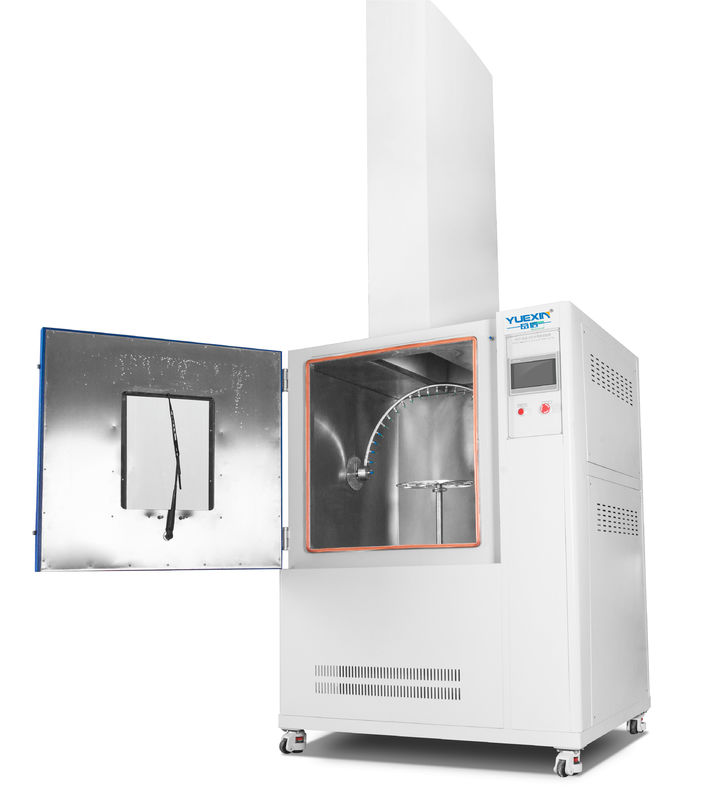

R400 IPX3-6 Rain Test Chamber for Accurate Simulation of Natural Rainfall
Generl specifications:
| Dimension |
Outer : L1350*W1100*H1750/
L500*W400*H2400;
Inner :W 900×D 900×H 900 (mm)
|
| Material |
External : steel plate;
Internal : 304 stainless steel
|
| Power supply |
380V/50HZ |
| Power |
2.5kw
|
Use:
The IPX3-6 water spray test chamber serves to assess the waterproof performance of electronic devices and their constituent parts. It finds applications across diverse fields including household appliances, communication equipment, and automotive electronics. Its primary objective is to scrutinize the water resistance of products under specific spray angles and pressures, thereby guaranteeing their reliability and safety in damp conditions.
Product structure:
Equipped with a distinctive top-spray system, this IPX3-6 spray test chamber excels at replicating the natural phenomenon of rain descending uniformly from overhead. Its comprehensive and balanced spray distribution ensures comprehensive compliance with waterproof performance standards across diverse and challenging environments, reinforcing the resilience of tested products against rain in practical applications.
Standard features for IPX3/4:
| Item |
Parameter |
| Radius of swivel tube9 |
R400 |
| Diameter of swivel tube |
800mm |
| Internal diameter of swivel tube |
15mm |
| Internal diameter of nozzle |
IPX3/4 : 0.4mm
|
| Number of nozzles of swivel tube |
See remark10 |
| Distance between nozzles |
50mm |
| Speed of rotation of the swivel tube |
60 degree/s |
| Swing pipe angle |
IPX3 : 120º;
IPX4 : 350º
|
| Water volume flow |
IPX3(L/min) : 1.1 ;
IPX4(L/min) : 1.8 ;
|
| Flow error range |
±5% |
Standard features for IPX5/6:
| Item |
Parameter |
| Diameter of nozzles |
IPX5 : 6.3mm;
IPX6 :12.5mm
|
| Water flow |
IPX5 : 12.5±0.625 L/min
IPX6 : 100.0±5.0L/min
|
| Spray distance |
2.7m |
| Spray direction |
Spray from back to front |
| Spray height |
＜700mm |
| Nozzle swing speed |
0-20 cycle/min |
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 Standard load-bearing upper limit of turntable is 50kg,but also can be customized per requirements.Turntables of φ200mm are provided for replacement.
5 If the sample height exceeds 150mm, it is recommended to choose the swing spray method.
6 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.
7 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.
8 It is recommended to set the test time according to the test standard. The water temperature will rise due to long time test which has an impact on the test results.
9 Multiple specifications of pendulum tubes can be provided, please confirm clearly before placing an order; if other specifications are added after purchase, the equipment needs to be returned to the factory to replace hardware and programs.
10 The specifications of swing pipe for IPX3/4 rain test, as shown in the figure below:
11 This distance is the range from the nozzle to the center of the turntable. If the user wants to extend the spraying distance, he needs to explain in advance.
12 Since the IPX5 water spray is in a parabolic shape, the water spray range will be lower than this height, and the measured maximum water spray height is close to 550mm.
13 The photos may not match the actual ones, and are for user reference only.
