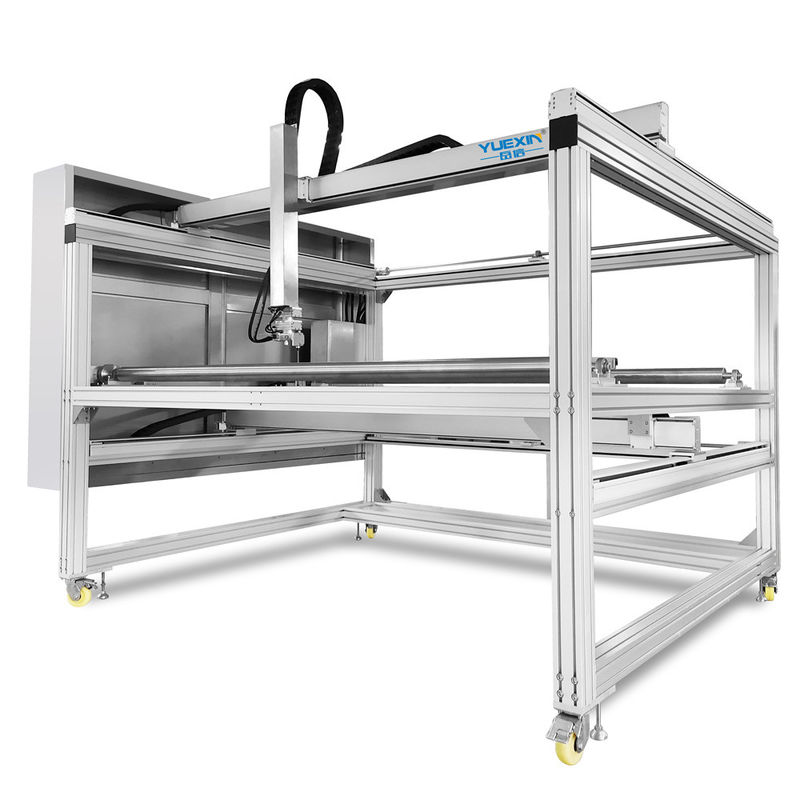

Automatic Rain Test Equipment Waterprooof Tester For IPX9K

Automatic Rain Test Equipment for IPX9K, Wide Spray Range Waterprooof Tester

Generl specifications:



Product Introduction:


The IPX9 testing chamber, equipped for high-pressure spray evaluations, meticulously examines the waterproof capabilities of products under extreme heat and pressure scenarios. By simulating the rigorous steam cleaning cycle, it offers a comprehensive assessment of the products' resilience and longevity amidst challenging environmental factors.

• The spray distance can be adjusted manually to meet the standard (125±25mm).
• The outer layer of the water tank is pasted with thermal insulation cotton to reduce heat dissipation and ensure a constant water temperature.
• The sample power socket (220V, 10A) is mounted on the right wall of the inner box, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding⁵.
• The equipment adopts high-quality high-temperature and high-pressure water pumps to make the test process more stable.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages⁶.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
• Protection measures: short circuit protection, water shortage alert and door open alert⁷.

Technical data:



Remark:


1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.

4 Standard load-bearing upper limit of turntable is 30kg,but also can be customized per requirements.

5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.

6 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.

7 Door open alert: when the door is open, the test cannot be conducted to protect personnel from being drenched in water.

8 The photos may not match the actual ones, and are for user reference only.

Product detail picture:

                                                circuit board
