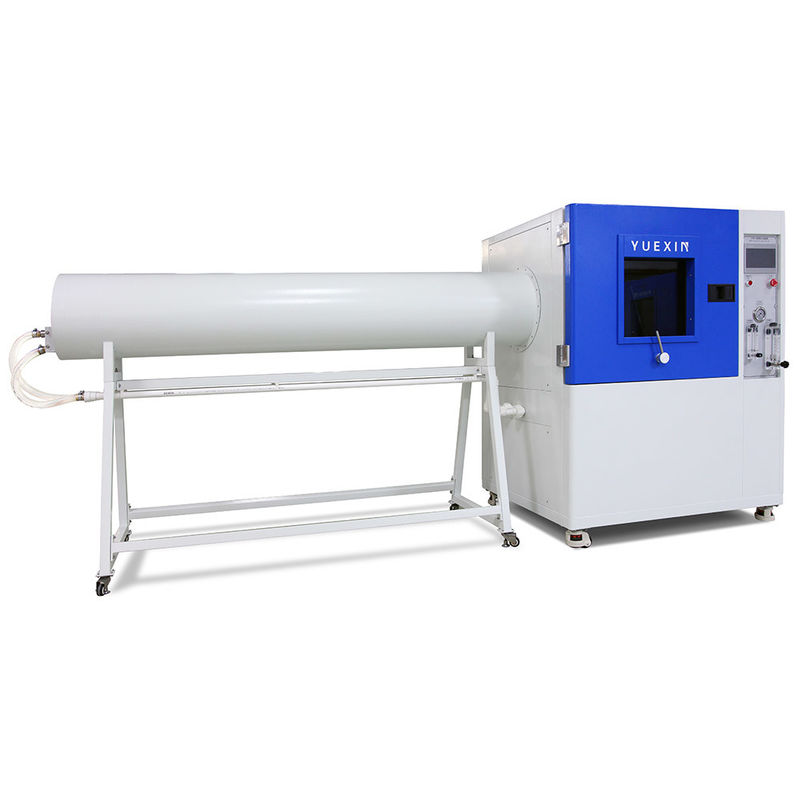

IPX5 IPX6 700L Water Jet Test Chamber , Simulated Enviromental Rain Test Chamber

IPX5 IPX6 700L Water Jet Test Chamber, Simulated Enviromental Rain Test Chamber

Generl specifications:

Product information:

In comparison with handheld spray devices, this product not only lessens the demand for manual labor but also incorporates water recycling technology, leading to cost savings in operation.

• There is a water storage tank inside the equipment and a water level control system. When the water is full, it will prompt, and when it is short of water, it will alarm.
• The sample power socket (220V, 10A) is mounted on the right wall of the inner box, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding ⁵.
• There is a waterproof lighting inside, which is convenient for users to observe the test situation.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages⁶.
• Test time setting: 0-999min⁷.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
• Protection measures: short circuit protection, water shortage alert.

Standard features:

Cautions:

1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.

4 Standard load-bearing upper limit of turntable is 30kg,but also can be customized per requirements.

5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.

6 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.

7 It is recommended to set the test time according to the test standard. The water temperature will rise due to long time test which has an impact on the test results.

8 The standard model is adjusted by a flowmeter, and the upper surface of the float is aligned with the scale to read the data; if you need to export the test data, you can choose a flow sensor.

9 This distance is the range from the nozzle to the center of the turntable. If the user wants to extend the spraying distance, he needs to explain in advance.

10 The photos may not match the actual ones, and are for user reference only.

Application:

The versatile IPX56 water spray tester mimics severe weather conditions, encompassing heavy rainfall and forceful water jets, to ascertain products' resilience under all types of weather. It finds extensive use in assessing the waterproof capabilities of electronics, lighting systems, automotive parts, electrical appliances, cabinets, and cutting-edge smart wearables.

Product detail image:

                                                              spray gun
