Comprehensive IPX5 Touch Control Water Jet Test Equipment Spray Side and Top

 Comprehensive IPX5 Touch Control Water Jet Test Equipment Spray Side and Top

Generl specifications:

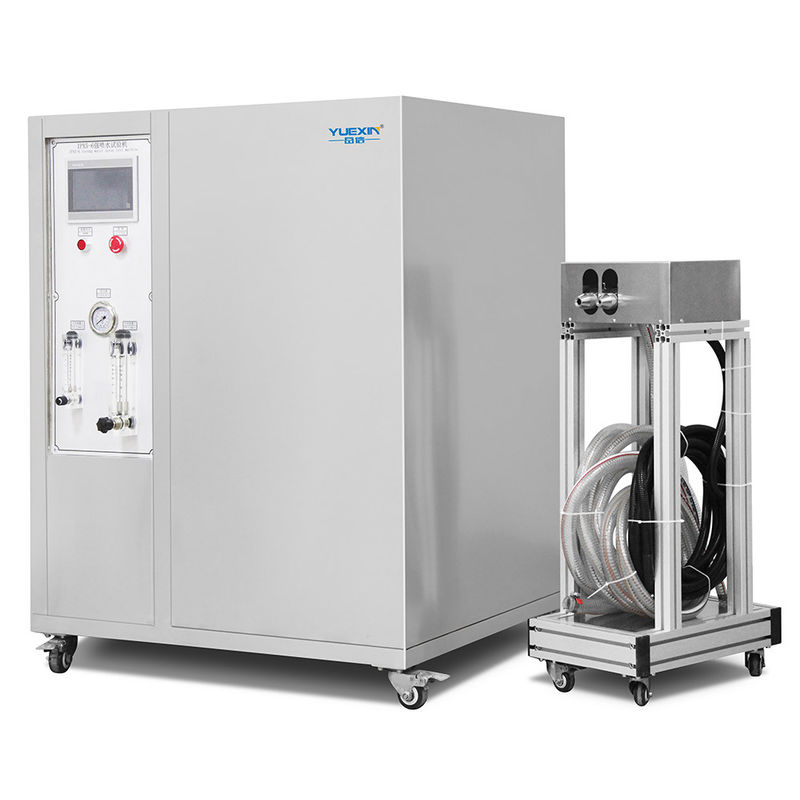

Description to IPX5 Water Jet Test Machine:

The spraying method of this equipment is spraying from the side and the top, with a wide coverage, which can make the test results more comprehensive and accurate.

• The left side of the equipment is the control box, and the right side is the water storage tank. The volume of the water tank is about 400L. There is a water level control in the water tank, with a low water level prompt (water shortage alarm).
• The sample power socket (220V, 10A) is mounted on the side of the turntable, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding.
• Equipped with a special water spray bracket, the nozzle can automatically swing up and down and move left and right,so that the water spray covers a wider area. The water spray angle and water spray height can be set through the program.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
• Protection measures: short circuit protection, water shortage alert.

The main technical parameters:

Service scenario:

The specialized IPX5 and IPX6-compliant rain testing chambers offer a rigorous examination of the waterproof performance of high-end electronic devices, spanning mobile phones, tablets, cameras, and LCD TVs. By replicating the conditions of heavy rain and downpours, they attest to the devices' and their individual components' continued efficacy under extreme weather conditions.

Detail photo:

                                                                spray guns

Tags: IPX5 Waterproof Equipment, Water Jet Testing Machine, Water Jet Climatic Machine
