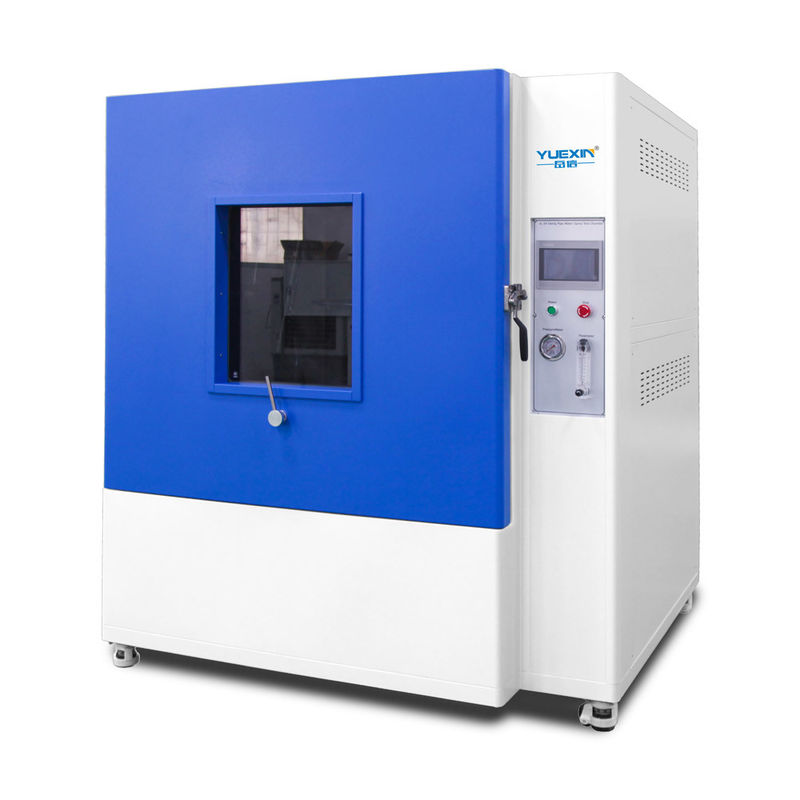

Pressurization 800 mm Rain Spray Environmental Chamber for IPX3 IPX4
Generl specifications:
- Outside dimension: L2450*W1900*H2350
- Inside dimension: W1300×D 1300×H1300 (mm)
- Power supply: 220V/50HZ
- Power: 1.0kW
Standard features:
This rain spray testing equipment, capable of applying pressure, simulates waterproof testing scenarios more closely aligned with real-world applications than conventional swing tube rain chambers. Consequently, it yields more precise and trustworthy test results.
- There is a water storage tank inside the equipment and a water level control system. When the water is full, it will prompt, and when it is short of water, it will alarm.The sample power socket (220V, 10A) is mounted on the right wall of the inner box, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding 5. And there is a waterproof lighting inside, which is convenient for users to observe the test situation.
- Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages6.
- Test time setting: 0-999min7.
- Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
- Protection measures: short circuit protection, water shortage alert.
- Box-type structure, can be recycled water testing, saving resources and more environmentally friendly (it is recommended to replace the water once a week to prevent the deterioration of water quality)
- Using Yuexin independent research and development and design of the operating interface, support for multi-language switching, and in the case of networking can be handled remotely to deal with program problems.
- The equipment adopts stainless steel water pump to ensure that the machine operates for a long time without rusting and is very durable.
- There is a drainage groove under the window of the equipment to prevent dripping water from flowing out directly along the box door, resulting in rust or deformation of the lower edge of the box door.
- Internal front water storage tank, can be convenient for maintenance and timely water change, the water tank has a filter, can prevent parts impurities into the pump.
The main technical parameters:
| Item |
Specification |
| Radius of swivel tube8 |
R800mm |
| Diameter of swivel tube |
1600mm |
| Internal diameter of swivel tube |
15mm |
| Internal diameter of nozzle |
0.4mm |
| Number of nozzles of swivel tube |
See remark9
|
| Distance between nozzles |
50mm |
| Speed of rotation of the swivel tube |
60 degree/s |
| Swing pipe angle |
IPX3:120º; IPX4:350º |
| Flow control10 |
Manual adjustment with flow meter |
| Water volume flow11 |
IPX3(L/min): 1.8;
IPX4(L/min): 2.6
|
|
Flow error range
|
±5% |
| Flow meter range |
0-3.0 L |
Operating scene:
The precision rain chamber painstakingly duplicates rainfall patterns for rigorous evaluation of durability, sealing integrity, and operational competency in moist environments. Serving a diverse range from electronics to automotive parts, outdoor equipment, and many more applications, its automated operation and water conservation features simplify testing workflows, ensuring precise and reliable test results.
Precautions:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 Standard load-bearing upper limit of turntable is 25kg,but also can be customized per requirements.
5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.
6 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.
7 It is recommended to set the test time according to the test standard. The water temperature will rise due to long time test which has an impact on the test results.
8 The swing pipe can be equipped with a variety of specifications, which can be selected according to the sample size range (satisfying the spray distance <200mm), please confirm clearly before placing an order.
9 The specifications of swing pipe for IPX3/4 rain test, as shown in the figure below:
10 The standard model is adjusted by a flowmeter, and the upper surface of the float is aligned with the scale to read the data; if you need to export the test data, you can choose a flow sensor.
11 When reading the flowmeter, the second digit after the decimal point is the estimated reading data, not accurate data; if the user is concerned about the accuracy of the data, a flow sensor can be selected through negotiation.
12 The photos may not match the actual ones, and are for user reference only.
Product detail image:
