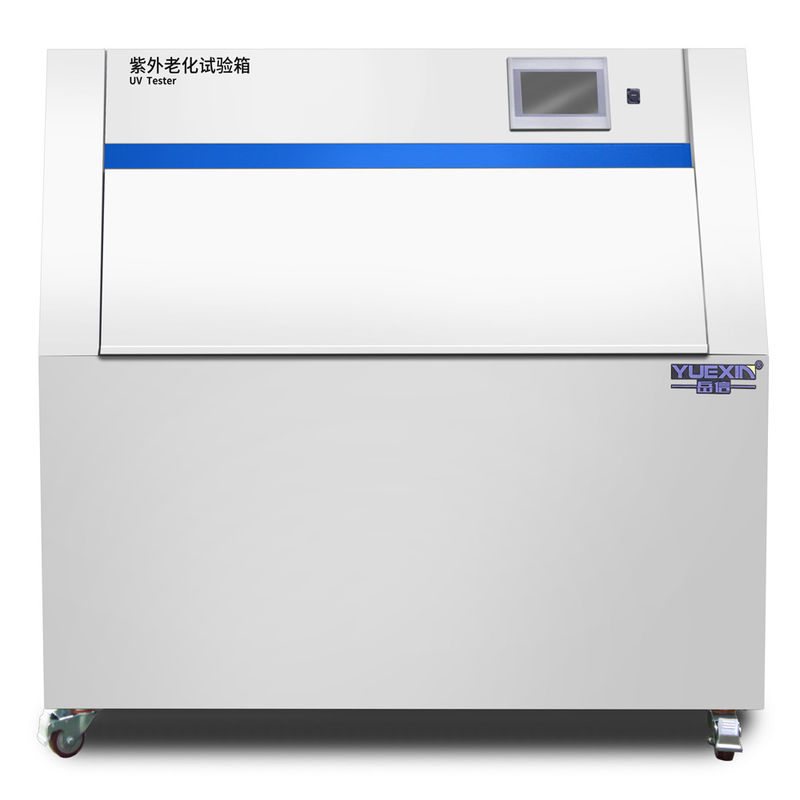

Fluorescent UV Accelerated Aging Test Chamber , UV Lamp Weathering Tester
Machine introduction:
The Fluorescent UV Aging Test Chamber simulates sunlight's UV rays to accelerate aging of materials. It features adjustable UV intensity, temperature and humidity control, replicating diverse weather conditions. Constructed with stainless steel for durability, it ensures precise measurement and control.
- The interior is made of 304 stainless steel, which is durable.
- Use nickel-chromium alloy to heat air and water, heating control method: non-contact SSR (solid state relay).
- Using touch screen control, it can monitor and display the test situation.
- The sample holder is made of pure aluminum metal, and the distance from the sample surface to the center of the light pipe is 50±3mm.
- Light irradiance is adjustable and controllable, with high irradiance control function.
- It has dual functions of low water level alarm and automatic water replenishment.
- Protection system: water shortage protection, over-temperature protection, low (high) irradiance alarm, sample rack temperature over-temperature protection, sample rack temperature low alarm, leakage protection.
Technical data:
| Item |
Parameters |
|
Black Panel Temperature Range (BPT)
|
40～90℃
|
|
Light cycle temperature control range
|
40～80℃
|
|
Condensing cycle temperature control range
|
40～60℃
|
|
Temperature fluctuation
|
±1℃
|
|
Relative humidity
|
When condensation ≥95%
|
|
Irradiance control method
|
Automatic control of light irradiance
|
|
Condensation method
|
Nickel-chromium alloy electric water heating condensation system
|
|
Condensation control
|
Condensation direct display and automatic control
|
|
Sample rack temperature
|
Sample rack temperature BPT direct display and automatic control
|
|
Cycle mode
|
Direct display and automatic control of light, condensation, spray, light + spray
|
|
Water supply method
|
Automatic water supply
|
|
Spray water
|
Adjustable and display, automatic control, spray time can be set during the test
|
|
Light irradiance
|
Light irradiance and time can be set during the test process
|
|
Number of light pipes
|
8pcs, UVA or UVB UVC fluorescent ultraviolet light tube
|
|
Type of light source
|
UVA or UVB fluorescent ultraviolet light tube (normal service life more than 4000 hours)
|
|
Power source
|
40W/one
|
|
Wavelength range
|
UVA: 340nm, UVB: 313nm; UVC lamp
|
|
Control range
|
UVA:0.25～1.55 W/m2
UVB:0.28～1.25W/m2
UVC:0.25～1.35 W/m2
|
|
Radioactivity
|
Automatic control of light irradiance
|
|
Power
|
2.0kw
|
Installation requirements:
- Aisle: Before the equipment enters the factory, please confirm that the space in the aisle, elevator, laboratory, etc. of the factory area is sufficient for the equipment to pass through.
- Water source: Please prepare purified water；water pressure reaches 138 ~ 344Kpa (20 ~ 50psi), flow: minimum 5L/min.
- Power supply:220V/50HZ；2.0kw；please check whether it is compatible.
- Site space:≥W1500×D1500×2000mm
- The room needs to reserve a drain, and the back of the machine can be connected to the water pipe for drainage.
- Use environmental conditions:
1 Temperature: 8℃～50℃.
2 Relative humidity: less than 85% .
3 No direct sunlight or direct radiation from other heat sources.
4 There is no high concentration of dust and corrosive substances around.
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 Our company has other types of testing machines that can be supplied, and users are welcome to consult.
4 The photos may not match the actual ones, and are for user reference only.
The detail images:
inner box inner box
