Product size and material:


• External dimension: Approx W 1100×D 650×H 1150 (mm)
• External material: 304 stainless steel
• Internal dimension: Approx φ500×H 800 (mm)
• Internal material: Acrylic


Test principle:

By filling the tank with compressed air and increasing the water surface pressure, the pressure in the water increases synchronously, thereby simulating different water depth environments.

Product structure:

• The test container is made of acrylic material, which is convenient for users to observe and record⁴.
• Built-in high-precision pressure sensor, which can display internal pressure changes synchronously.
• The tank cover is raised and lowered by the cylinder to reduce the operating risk of the test personnel.
• The tank cover is connected with a mechanical safety valve (not controlled by the software). If the set pressure exceeds the set pressure, the safety valve will release the pressure directly to ensure the safety of users.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages⁵.
• Protection measures: short circuit protection,overpressure protection.

• If the user needs to provide an external power supply for the sample, we can open a hole in the lid and provide a locking device (wire diameter <15mm).

Standard features:



Installation requirements:

• Aisle: Before the equipment enters the factory, please confirm that the space in the aisle, elevator, laboratory, etc. of the factory area is sufficient for the equipment to pass through.
• Water source: Please prepare clean water source.
• Air source: Please prepare a compressed air source with an output pressure of 0.6-0.8Mpa⁷.
• Power supply: 220V/50HZ, 100w；please check whether it is compatible.
• Site space: ≥W1500×D1400×2200mm

• The room needs to reserve a drain, and the bottom of the machine can be connected to a water pipe for drainage.

Remark:


1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 The formula of the corresponding relationship between pressure and water depth: P=9.8d (Unit :kPa,m).

4 It is necessary to avoid scratching the inner wall of the container by the sample, as scratches will affect the observation and video effects.

5 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.

6 The time unit set by the factory is generally in seconds. If you want to extend the test time, you need to explain in advance.

7 The user needs to prepare an air compressor in advance (recommended gas storage capacity > 60L). If you need us to buy it on your behalf, you need to explain in advance.

8 The photos may not match the actual ones, and are for user reference only.

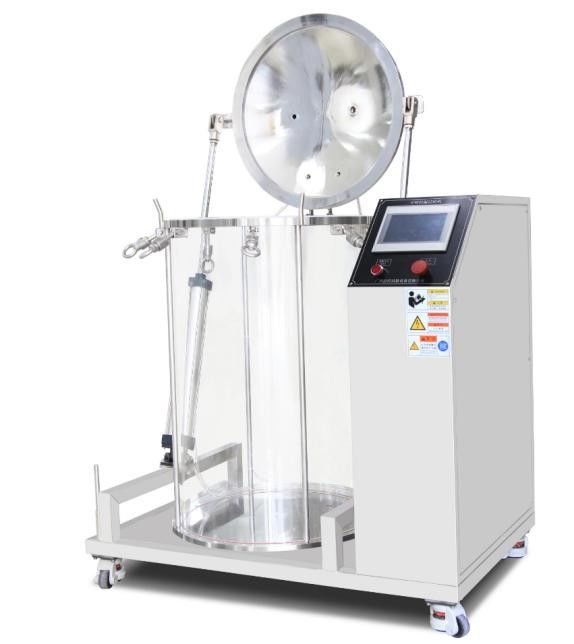

The detail photo of product:
