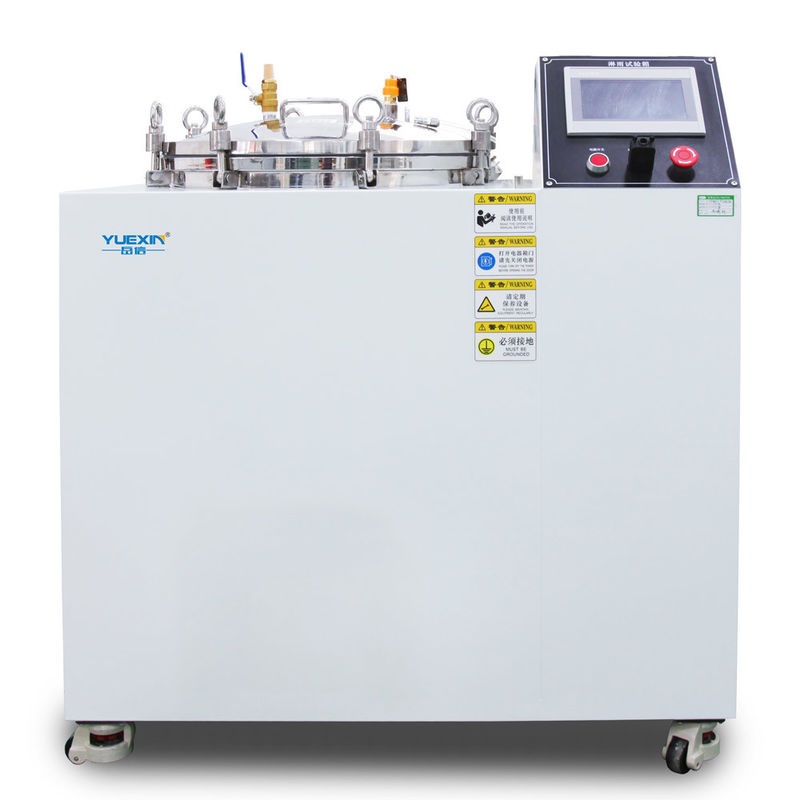

IPX8 30m Underwater Testing Chamber,Intelligent 100L Waterproof Test Equipment
Generl specifications:
| Outer dimension |
Approx W 610×D 780×H 1050 (mm)
|
| Pressure accuracy |
1 kPa |
| Power supply |
220V/50Hz |
| Power |
100w |
Features:
This product adopts a touchscreen to set parameters such as pressure and time, eliminating the need for complex mechanical adjustments, thereby enhancing testing efficiency.
- The device is equipped with a pressure sensor, which can display the internal pressure change synchronously.
- The tank cover is fastened with stainless steel can lid flange fasteners, and the seal is firm.
- Timing is performed by a time relay, and timing starts after the internal pressure reaches the set value.
- After the test is complete, the device automatically vents the pressure.
- The tank cover is connected with a mechanical safety valve. If the set pressure exceeds the set pressure, the safety valve will release the pressure directly to ensure the safety of users.
- The tank lid is lifted and lowered by cylinder driving to reduce operating pressure.
- If the user needs to provide an external power supply for the sample, we can open a hole in the lid and provide a locking device (wire diameter <15mm)5.
Technical data:
| Item |
Specification |
| Thickness of lid |
15 mm |
| Flange thickness |
20 mm |
| Tank thickness |
3 mm |
| Equipment net weight |
Approx 70 kg |
| Pressure range |
0-300 kPa |
| Water depth(maximum) |
30 meters |
| Adjustment method |
Automatic adjustment |
| Pressure accuracy |
1 kPa |
| Pressure error value |
±2 kPa |
| Set pressure of safety valve |
0.35 Mpa(350kPa) |
| Testing time6 |
0-999min |
| Power supply |
220V/50Hz |
| Power |
100 w |
Application:
The IPX8 submersion test chamber is suitable for verifying the water resistance of electronic devices, smartwatches, cameras, and other products rated for underwater use. It simulates deep-water conditions to ensure they remain functional up to specified depths.
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 The formula of the corresponding relationship between pressure and water depth: P=9.8d (Unit :kPa,m).
5 Please wear insulating gloves during power-on test to avoid personal safety problems.
6 The user needs to prepare an air compressor in advance (recommended gas storage capacity > 60L). If you need us to buy it on your behalf, you need to explain in advance.
7 The photos may not match the actual ones, and are for user reference only.
Detail picture:
inlet and outlet
