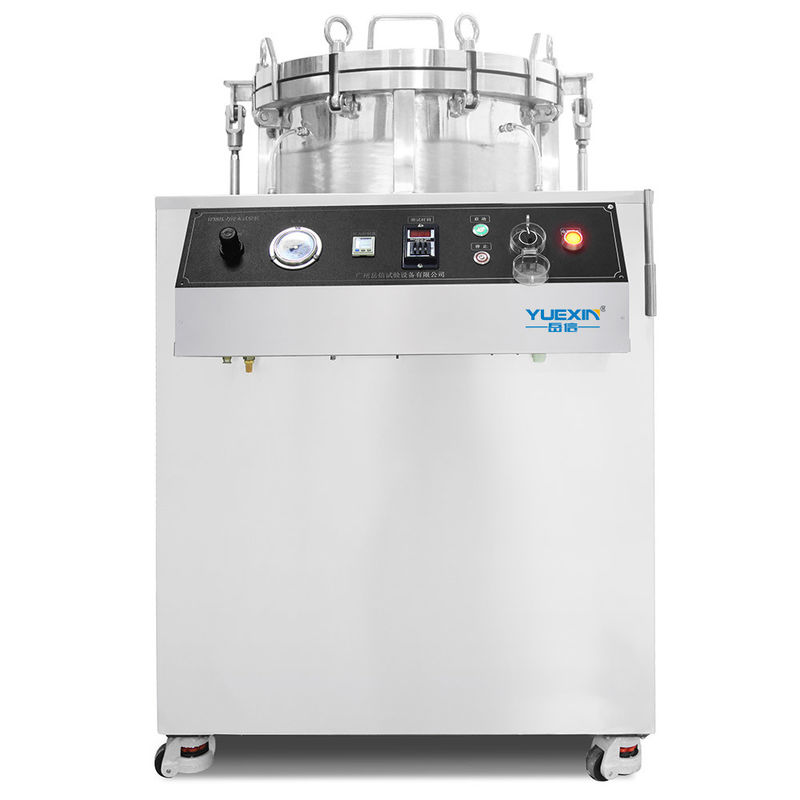

30m IPX8 Diving Depth Test Machine , 100L Water Immersion Test Chamber
| Place of Origin | Guangdong , China |
| Brand Name | YueXin |
| Certification | ISO 20653:2013, DIN 40050-9:1993, IEC60529:2013 |
| Model Number | YX-IPX8-30AC-100L |
| Document | Product Brochure PDF |
30m Water Immersion Test Chamber
,100L Water Immersion Test Chamber
Reliable 30m IPX8 Diving Depth Test Machine, 100L Immersion Test Chamber
Product introduction:
The specialty of this equipment lies in its cylinder-lifting can cover, which provides higher flexibility and adaptability for tests, making it suitable for a wider range of experimental needs. Meanwhile, the can cover can be quickly opened or closed to respond to emergencies or sudden situations, enhancing operational convenience and safety.
- The device is equipped with a pressure sensor, which can display the internal pressure change synchronously.
- The tank cover is fastened with stainless steel can lid flange fasteners, and the seal is firm.
- Timing is performed by a time relay, and timing starts after the internal pressure reaches the set value.
- After the test is complete, the device automatically vents the pressure.
- The tank cover is connected with a mechanical safety valve. If the set pressure exceeds the set pressure, the safety valve will release the pressure directly to ensure the safety of users.
- The tank lid is lifted and lowered by cylinder driving to reduce operating pressure.
- If the user needs to provide an external power supply for the sample, we can open a hole in the lid and provide a locking device (wire diameter <15mm)5.
Generl specifications:
| Outer dimension |
Approx W 610×D 780×H 1050 (mm) |
| Pressure accuracy | 1 kPa |
| Power supply | 220V/50Hz |
| Power | 100w |
The technical data:
| Item | Specification |
| Thickness of lid | 15 mm |
| Flange thickness | 20 mm |
| Tank thickness | 3 mm |
| Equipment net weight | Approx 70 kg |
| pressure range | 0-300 kPa |
| Water depth(maximum) | 30 meters |
| Adjustment method | Automatic adjustment |
| Opening method | cylinder drive |
| Pressure accuracy | 1 kPa |
| pressure error value | ±2 kPa |
| Set pressure of safety valve | 0.35 Mpa(350kPa) |
|
Testing time6 |
0-999 s/min/h |
| power supply | 220V/50Hz |
| power | 100 w |
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 The formula of the corresponding relationship between pressure and water depth: P=9.8d (Unit :kPa,m).
5 Please wear insulating gloves during power-on test to avoid personal safety problems.
6 The time unit of the test can be freely selected, and it can be adjusted through the time relay before starting the test.
7 The user needs to prepare an air compressor in advance (recommended gas storage capacity > 60L). If you need us to buy it on your behalf, you need to explain in advance.
8 The photos may not match the actual ones, and are for user reference only.
Product picture:
exhaust valve
